Hi Everyone

Here is the continuation of the intake valve construction.
The valve body was removed from the frame using the band saw; I’m sorry I got carried away and didn’t take many machining pictures. It was all pretty straight forward; I decided instead of reaching down through the 1/16” pipe openings to cut the ports that I would make an insert that would have the ports, valve seat and threads for the cap. My buddy gave me a bad time about it but it all worked out well.


After some machine work and fettling here is the valve body ready to have the insert installed.


Here is a shot of the insert; you can see the ports and the valve seat on the edge of the flat land.


And a different view.


The insert was Loctited in place with high strength cylindrical bonder (609) also I always use the primer.


After the Loctite set the top of the insert was faced off flush with the bronze body.


Here is a shot of the valve; the original had the tapered top like this one does (at least the one I saw a photo of did).


The two remaining parts were the cap and the bob weight. The cap was designed to look like the one on the exhaust chest only smaller.


Here is a shot of the cap installed on the body.


And finally a couple shot of the completed valve assembly installed on the engine.



I’m very pleased with how it turned out; hopefully it will perform ok as well. I still need to make the copper sealing washers for both valve caps.

Now on to the gas and air hand cocks.


Thanks again for checking in and all the kind words.
Dave

Offline steamer

  • Global Moderator
  • Full Member
  • *****
  • Posts: 10964
  • Central Massachusetts, USA
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #241 on: November 20, 2013, 02:24:06 AM »
Wow that is Gorgeous Dave!

Dave
"Mister M'Andrew, don't you think steam spoils romance at sea?"
Damned ijjit!

Offline swilliams

  • Full Member
  • ****
  • Posts: 896
  • Canberra Australia
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #242 on: November 20, 2013, 02:29:11 AM »
That's really turned out beautifully Dave

Steve

Offline Don1966

  • Full Member
  • *****
  • Posts: 6284
  • Morgan City, LA (Along the Gulf Coast)
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #243 on: November 20, 2013, 02:34:55 AM »
That's really turned out beautifully Dave

Steve
What Steve said, I ilke.......... :ThumbsUp:

Don

Offline Jo

  • Administrator
  • Full Member
  • *****
  • Posts: 13959
  • Hampshire, england.
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #244 on: November 20, 2013, 07:32:37 AM »
 :naughty: It does look rather nice. There is nothing wrong with having an insert for your ports and seats  :ThumbsUp:.

Jo
Enjoyment is more important than achievement.

Offline vcutajar

  • Full Member
  • *****
  • Posts: 2514
  • Marsascala, MALTA
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #245 on: November 20, 2013, 12:13:01 PM »
What a beauty!!

Vince

Offline Kim

  • Global Moderator
  • Full Member
  • *****
  • Posts: 4309
  • Portland, Oregon, USA
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #246 on: November 20, 2013, 02:47:31 PM »
Wow Dave!  That looks really nice!  :ThumbsUp:

Kim

Offline smfr

  • Full Member
  • ****
  • Posts: 1195
  • San Francisco Bay Area, California
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #247 on: November 20, 2013, 05:08:59 PM »
Very nice! That looks almost too good  ;D  The insert is a neat trick, too.  :ThumbsUp: :ThumbsUp:

Simon

Offline Tennessee Whiskey

  • Full Member
  • *****
  • Posts: 3777
  • Springfield, Tennessee. USA
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #248 on: November 20, 2013, 07:10:52 PM »
Magazine and museum quality stuff. I just dream of being able to replicate this level of craftsmanship. :cheers:

Whiskey

Online Dave Otto

  • Full Member
  • *****
  • Posts: 3939
  • Boise, Idaho USA
    • Photo Bucket
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #249 on: November 21, 2013, 02:11:00 AM »
Wow thanks for all the kind words everyone; that means a lot to me.

Simon, the bronze oxidizes pretty fast so hopefully it wont look too nice for very long. No polish on this one; I want it to develop a nice patina; it will be painted though.


Dave

Online Dave Otto

  • Full Member
  • *****
  • Posts: 3939
  • Boise, Idaho USA
    • Photo Bucket
Re: Pacific Vapor Engine from Morrison & Marvin Castings
« Reply #250 on: November 26, 2013, 02:33:32 AM »
Hi everyone,

The Pacific doesn’t have any type of mixer or carburetor just 3 hand cocks; one for air one for gas and the third acts as a throttle. Primitive I know but after all it was 1890.

Morrison and Marvin supply these beautiful bronze investment cast hand cocks. These are scaled directly from originals of the same period.

To properly make these valves there really is no getting around having to make some fixtures. I thought about this a lot (procrastinated) about how I was going to do it. Having access to rapid prototyping equipment at work I decided that I would like to try making some machining fixtures on the 3D printers.
So maybe part of this segment should be titled adventures in 3d printing.


Here are the valve castings from Morrison and Marvin. I did just a little fettling to remove the mold lines and then a trip through the bead blaster which restored the original finish.


Starting with the body castings; they were held in a hex collet and indicated in. Carefully the end was faced and center drilled. The main diameter was turned and a notch cut as a reference to where they would be cut off.


Here are the bodies ready for the next operation.


Flipped around and held in a collet the bore for the ID thread is opened up with a boring bar to maintain concentricity with the opposite end.

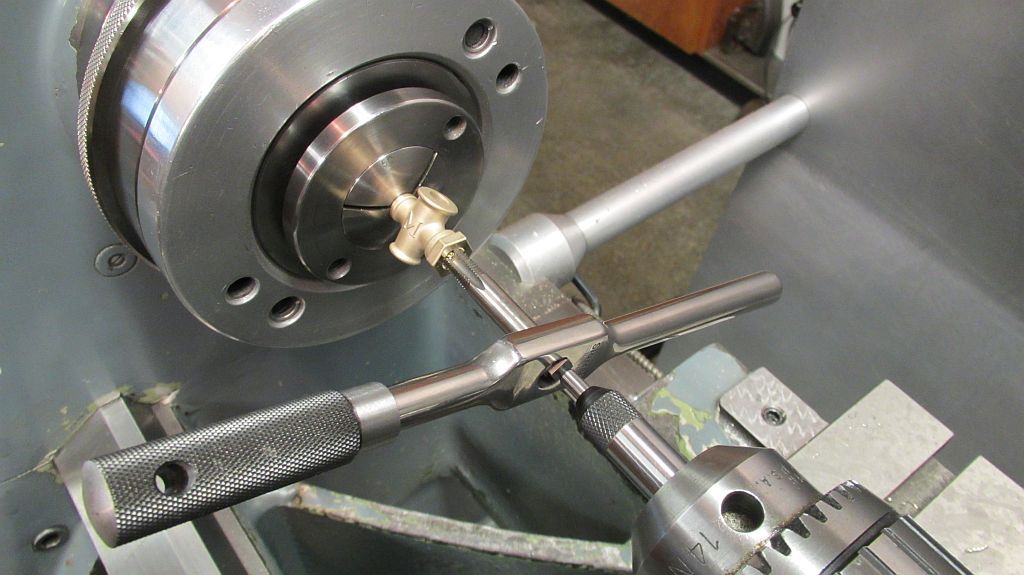

The 1/16” NPT or 5/16”MTP is taped using a guide in the tailstock.
