Got some playtime in the shop this afternoon, and got the Thew engine buttoned up and spent about an hour getting the timing tweaked to make it run well in both directions. A few eccentric angle changes, and one cylinder needed the centering adjusted by one turn. It was pretty close on first try, but had a lope in one direction. Here is a video of it running, as the shop apprenticelf checks it off his list:
<a href="https://www.youtube.com/watch?v=im8eqCCLV-c" target="_blank">http://www.youtube.com/watch?v=im8eqCCLV-c</a>


That nearly completes this build - still want to make up a set of cylinder drain valves that look better than the hex head screws that are plugging the holes now! They work, but don't look very appropriate. Also need to touch up some paint in a couple places. Then I'll set up an air hose to go to the whole line of engines at once, and see if the compressor can drive them all together. Should work since the radial engine I did a while back had about the same total displacement as these engines. Could do that now, but I want to have all the parts complete for the grand run! One more day should do it. Thanks for following along so far!


[cnr6400]

  The Thew engine's a runner too! Very smooth.

I see the supervisor showed up after all the work was done! Never saw that before... much....

[crueby]

The Thew engine's a runner too! Very smooth.

I see the supervisor showed up after all the work was done! Never saw that before... much....

Check your spelling - its "stupervisor"!

[crueby]

And we are there! Got the drain valves made, just a small turned globe-valve shape with a length of screw loctited in, too small to be practical so they are just dummy valves. Painted them, touched up a few scrapes here and there, and got them plumbed up with a common air line. I can run them on my compressor all at once for a little under a minute before the pressure drops too much. The compressor cannot keep up with refilling the tank with all four going, and I had to take the needle valve out of the air line since even wide open it was restricting the flow too much.
First some videos of them all running:
<a href="https://www.youtube.com/watch?v=sE1n4puVqiE" target="_blank">http://www.youtube.com/watch?v=sE1n4puVqiE</a>
<a href="https://www.youtube.com/watch?v=lPA-_UWsC4k" target="_blank">http://www.youtube.com/watch?v=lPA-_UWsC4k</a>

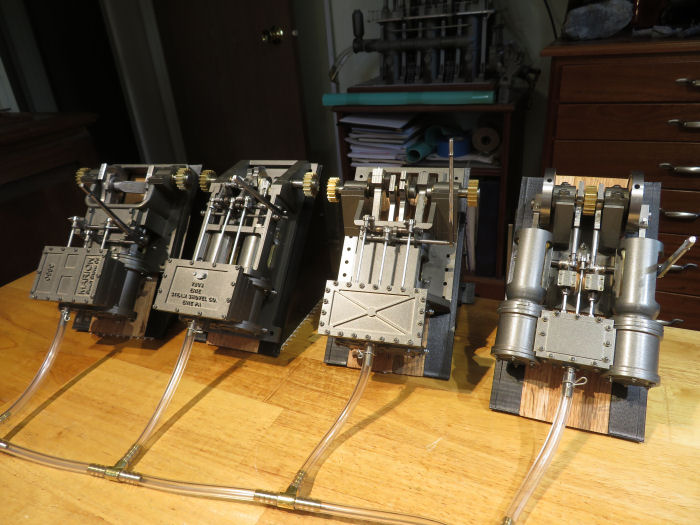

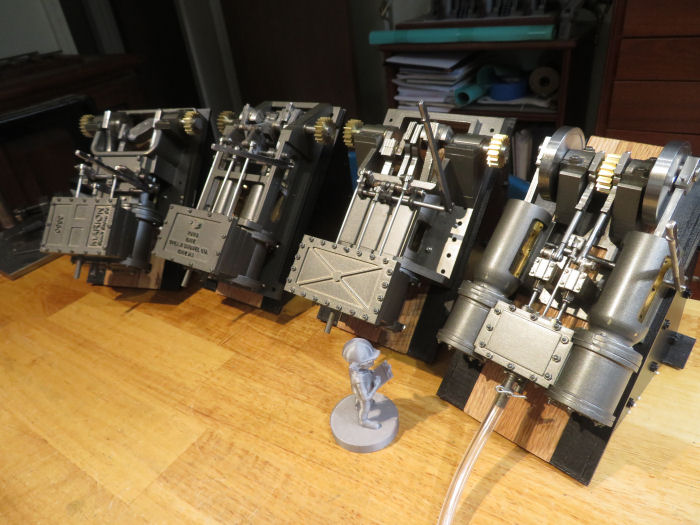

And pictures of them all:

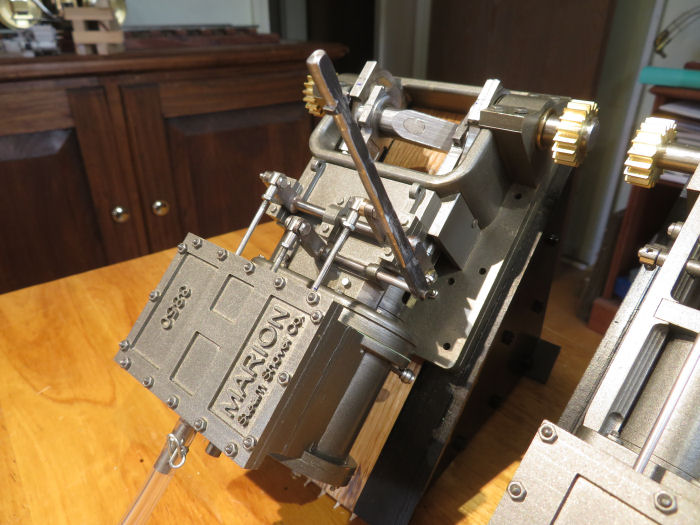

Marion:

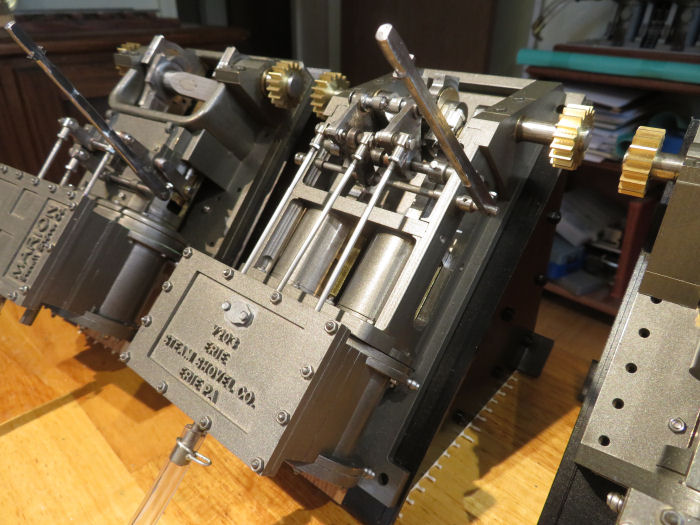

Erie:

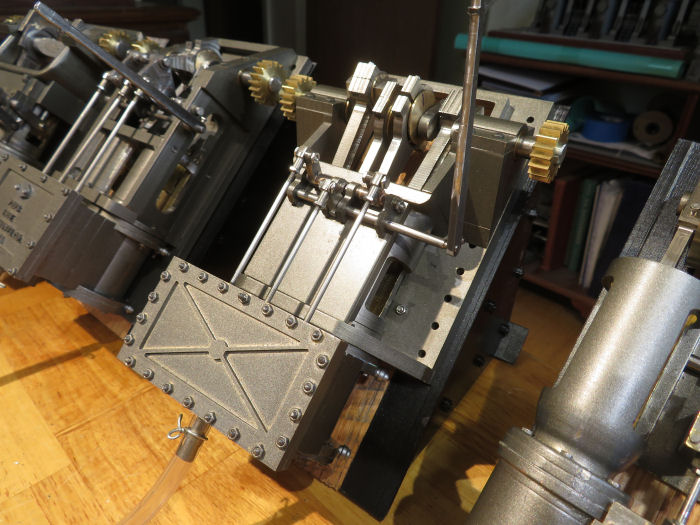

Bucyrus:

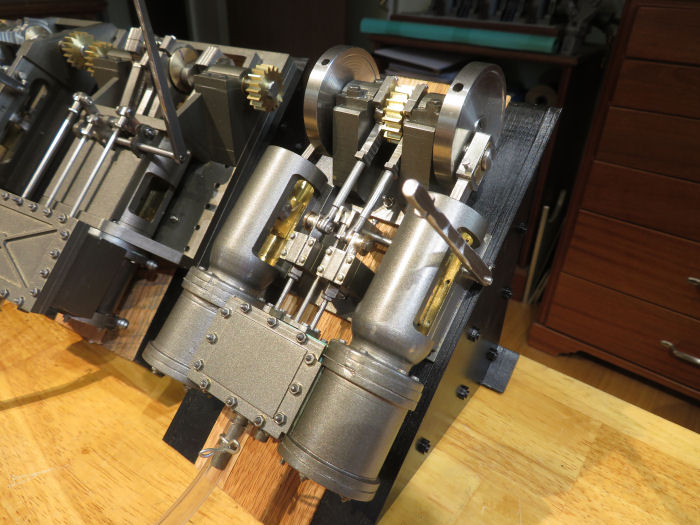

And the Thew:

That completes this build. Been a really fun one! I need to decide where they will go on the display cabinets. Either in front or above the Marion steam shovel in the shop, or somewhere in the Engine Room. Not sure yet.

And I know a question would be coming soon: what's next? Well, one that I've been wanting to do for a long time is the oscillating engine from the Diesbar paddle steamer. Michael helped me a LOT with details and pictures of the real thing, which runs on the river near him in Germany. A very interesting engine, uses the Penn valve gear with a slip eccentric for reversing. Here is a CAD drawing of what I've come up with:

I also have the paddlewheels themselves drawn up, would like to model at least one of those to go with the model. They would take up a lot of space to have both on the engine, they are a much larger diameter, but interesting since they have the paddle feathering mechanism on them.
Thanks to all who followed along!    Chris
