The 1:20 scale Battleship Ohio engine model is now complete!
Best to start of with a video of the model running, so here goes:

<a href="https://www.youtube.com/watch?v=FZ-S-wHIhzs" target="_blank">http://www.youtube.com/watch?v=FZ-S-wHIhzs</a>

Big thanks go to 'Steamer' Dave from this forum, who went out of his way to gave me a copy of the plans for the original engine back in August of 2022 - this project would not have happened without his help!

Some stats on the original engine as shown on the plans: 250psi steam pressure, 8000 horsepower, 125 rpm, 48" stroke, HP bore 35.5", IP bore 53", LP bores 2 at 63" each. For the Ohio, hull, 18 knots. Just a massive beast! In the video there is a little figure standing down at the corner. He is proper scale to the model, which shows just how huge the original was.

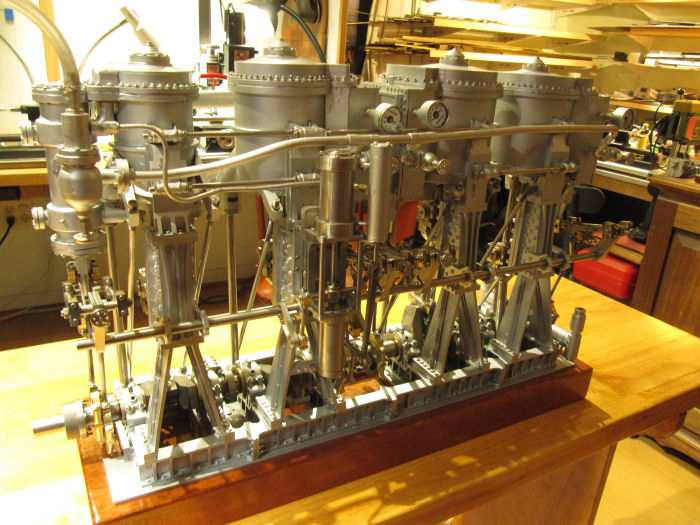

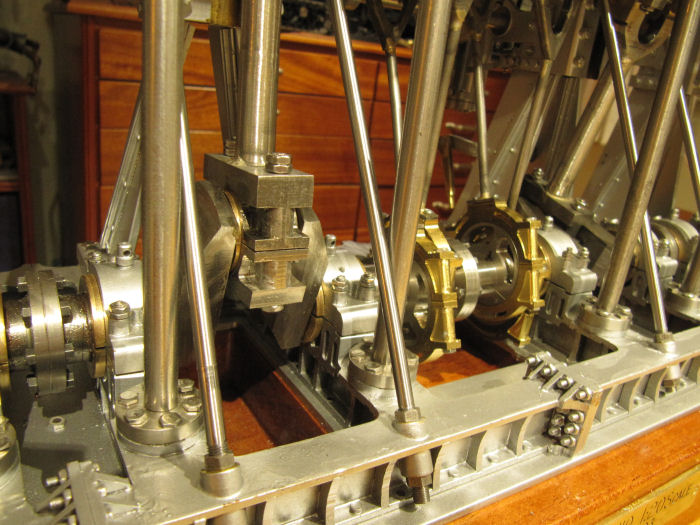

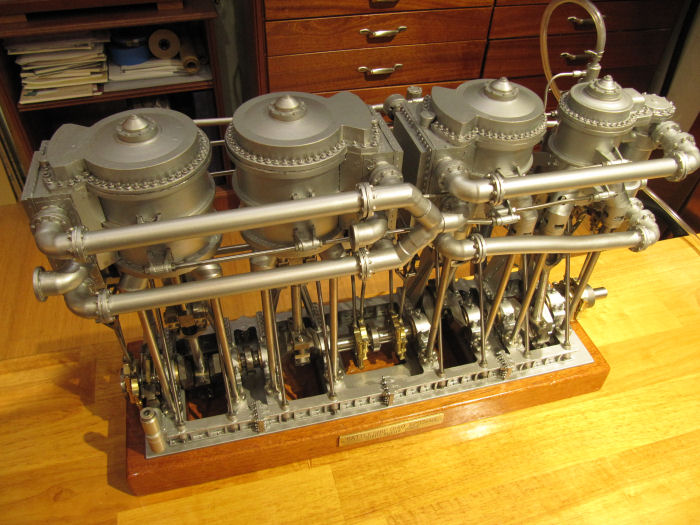

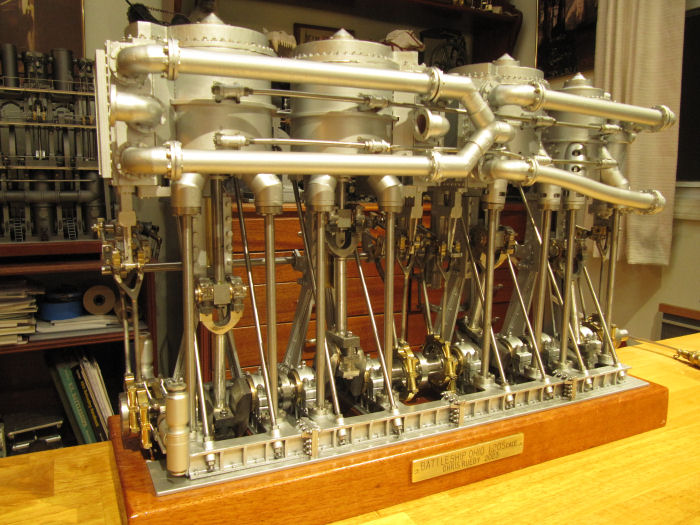

Here are some pictures of the model:







Thanks to all who followed along and those who helped with tips too!!
Chris
