Thanks Kerrin.
That build was started before there were any serious model enginering forums on the internet and I was just starting to useing digital cameras to document builds.  So no build thread was ever done.

Chris,
Not many CAT drawings that I know of for early CATs.  Coles has (or at least had) castings and drawings for the Holt engine.  Several of them have been built by folurm members.  George Brittnell  has shown photos of his quite oftem and offered grelat ladvice and assistance to other builders.
Gail in NM
l
I would like to be the kind of person my dog thinks I am.

Offline kvom

  • Full Member
  • *****
  • Posts: 2649
Re: Hornsb-Akroyd Crawler Tractor build
« Reply #46 on: December 27, 2016, 01:13:31 AM »
George himself would be extra proud of the ditcher.  Really superb.  A video of it shoveling would be great.   :cheers:

Offline GailinNM

  • Full Member
  • ****
  • Posts: 588
  • Albuquerque, NM, USA
Re: Hornsb-Akroyd Crawler Tractor build
« Reply #47 on: December 27, 2016, 04:35:09 AM »
Here is an early very poor video of the ditcher while we were testing the controls and learning how to run it.  I lost most of the good videos during a commputer crash. Need to make a new one showing it all painted up in finlished form.  I actually llike the lunpainted version better as the paint covers up the details in photographs.
Gail in NM
<a href="https://www.youtube.com/watch?v=WVnqHXbH7WQ" target="_blank">http://www.youtube.com/watch?v=WVnqHXbH7WQ</a>
I would like to be the kind of person my dog thinks I am.

Offline GailinNM

  • Full Member
  • ****
  • Posts: 588
  • Albuquerque, NM, USA
Re: Hornsb-Akroyd Crawler Tractor build
« Reply #48 on: December 27, 2016, 04:54:43 AM »
Now back to our regularly scheduled program -- at least for a little while.

With all the track parts completed it's assembly time.  After holding two plates and a roller in position and inserting the hinge pin it was very clear that I either needed one more hand or an assembly jig.  Jig option won oout.

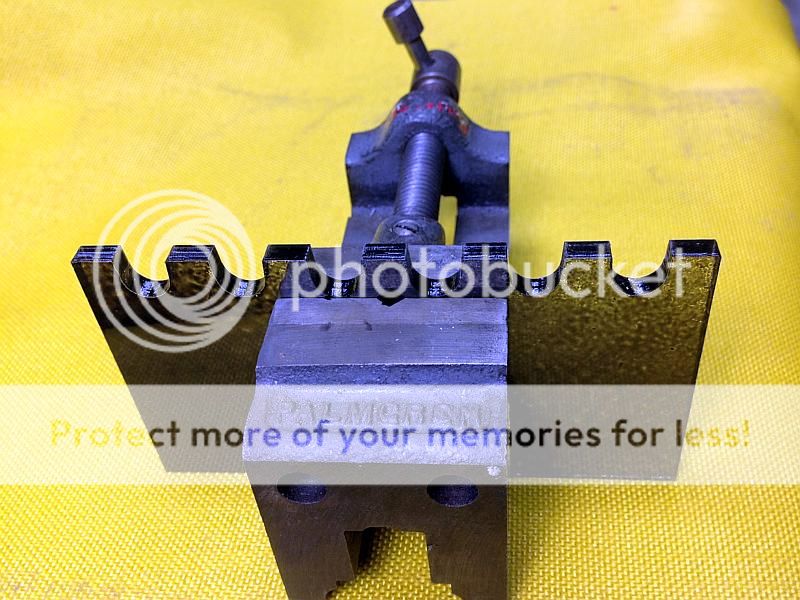

A piece of 4.5 mm acrylic sheet was cut on the laser engraver with pockets for the rollers.



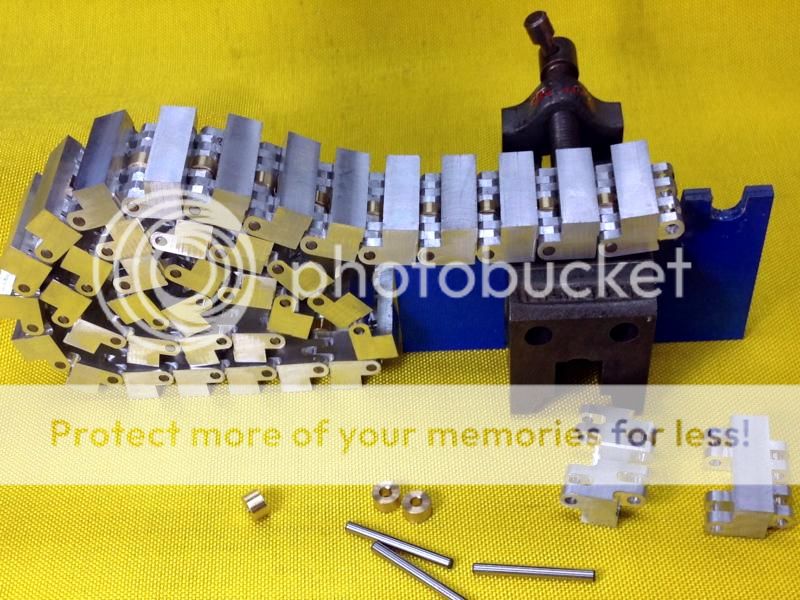

A length of track is assembled.  The hinge pins are a finger perss fit in the track plates.  Later, after I am sure I don't need to do any modifications, they will be Loctited iin place.  They are firm enough for testing now.
I would like to be the kind of person my dog thinks I am.

Offline crueby

  • Full Member
  • *****
  • Posts: 18556
  • Rochester NY
Re: Hornsb-Akroyd Crawler Tractor build
« Reply #49 on: December 27, 2016, 03:04:00 AM »
Really cranking out those tracks! Very nice.

Offline Steamer5

  • Global Moderator
  • Full Member
  • *****
  • Posts: 1272
  • The "Naki" New Zealand
Re: Hornsb-Akroyd Crawler Tractor build
« Reply #50 on: December 27, 2016, 05:35:04 AM »
Hi Gail,
 At this rate you will have it finished by Xmas !!  :lolb:

For somebody who said it would be a slow build, I'd hate to think what you could do if you were in a hurry!!

Looking really good!

Cheers Kerrin
Get excited and make something!

Offline GailinNM

  • Full Member
  • ****
  • Posts: 588
  • Albuquerque, NM, USA
Re: Hornsb-Akroyd Crawler Tractor build
« Reply #51 on: December 27, 2016, 05:44:05 AM »
Thanks Chris and Kerrin.
I am sure that you and most others realize that a lot of the track work was done before I started this thread.  I was a bit nervous about the tracks as I had not done any before so I wanted to be sure that they were going to be OK before publishing.  With the tracks debugged things are going to slow up a bunch.

I cut a couple of sprockets on the laser for testig. Mounted them on shafts and clamped the shafts in a pair of vices.

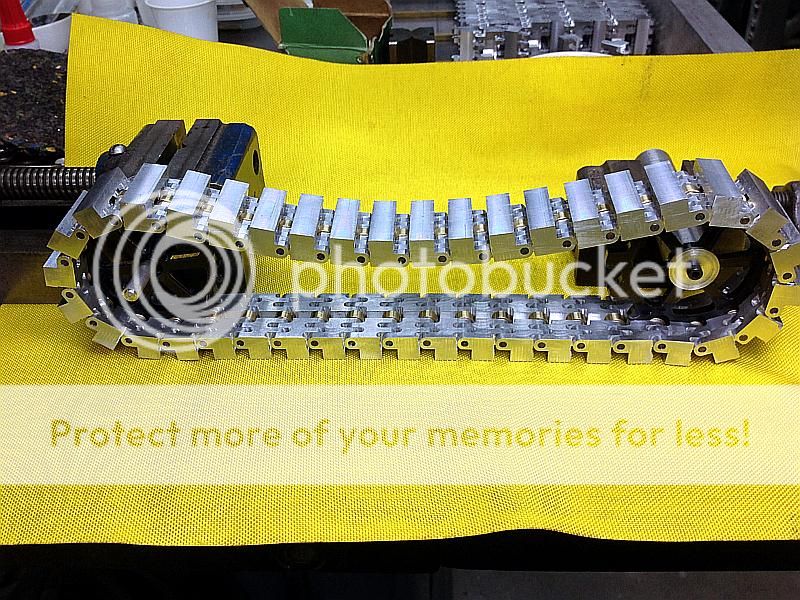

Here is an assembled track ready to start testing.
