Author Topic: Yogi's take on a Duclos Gearless  (Read 40912 times)

Offline yogi

  • Full Member
  • ****
  • Posts: 450
  • Duncannon, PA USA
    • Yogi's Workshop
Yogi's take on a Duclos Gearless
« on: December 20, 2015, 03:33:49 PM »
Hello everyone,

I think it's time to introduce my current project: A Duclos Gearless Hit 'n Miss engine.
As always, we can't just build an engine to plans, it needs to be modified. The biggest difference to the original design is, it'll be about 25% larger. And then there are some other minor changes you'll see along the way...

Some of the key dimensions:
Bore 25 mm
Stroke 36 mm
Flywheels 160 mm

Well, lets get started with the cylinder... enjoy















« Last Edit: December 20, 2015, 10:50:44 PM by yogi »

Offline cfellows

  • Rest In Peace
  • Full Member
  • *
  • Posts: 1700
Re: Yogi's take on a Duclos Gearless
« Reply #1 on: December 20, 2015, 03:43:34 PM »
That's a nice start.  What kind of mandrel is that holding the cylinder in the last two pictures?

Chuck
So many projects, so little time...

Online Kim

  • Global Moderator
  • Full Member
  • *****
  • Posts: 7863
  • Portland, Oregon, USA
Re: Yogi's take on a Duclos Gearless
« Reply #2 on: December 20, 2015, 03:53:56 PM »
Hi Yogi,
Nice work on your cylinder.  And a great job on the pictures too. Those are very crisp and well done!
Kim

Offline Don1966

  • Full Member
  • *****
  • Posts: 6817
  • Columbia, MS
Re: Yogi's take on a Duclos Gearless
« Reply #3 on: December 20, 2015, 03:54:32 PM »
Good start Yogi and you have my interest. I will be following along. Chuck I believe that is a expanding mandrel I have a set and love them.

Don

Offline yogi

  • Full Member
  • ****
  • Posts: 450
  • Duncannon, PA USA
    • Yogi's Workshop
Re: Yogi's take on a Duclos Gearless
« Reply #4 on: December 20, 2015, 03:58:33 PM »
Chuck, Don called it, its an expanding mandrel. They are very handy to have in your toolbox, specially for those odd holding setups. They are also very accurate.

Regards,
Yogi


Offline fumopuc

  • Full Member
  • *****
  • Posts: 3231
  • Munich, Germany, EU
Re: Yogi's take on a Duclos Gearless
« Reply #5 on: December 20, 2015, 06:24:41 PM »
Hi yogi, good start, I like these mandrels.
Kind Regards
Achim

Online Roger B

  • Global Moderator
  • Full Member
  • *****
  • Posts: 6138
  • Switzerland
Re: Yogi's take on a Duclos Gearless
« Reply #6 on: December 20, 2015, 07:17:01 PM »
Looks to be an interesting engine, I will be following along  :ThumbsUp:  :wine1:
Best regards

Roger

Offline b.lindsey

  • Global Moderator
  • Full Member
  • *****
  • Posts: 13860
  • Dallas, NC, USA
    • Workbench-Miniatures
Re: Yogi's take on a Duclos Gearless
« Reply #7 on: December 20, 2015, 07:30:30 PM »
Hi yogi. Nice start on a nice engine. Please take a moment to post something in the introduce yourself section so that everyone can welcome you to MEM.

Bill

Offline Brian Rupnow

  • Full Member
  • *****
  • Posts: 7575
  • Barrie, Ontario Canada
Re: Yogi's take on a Duclos Gearless
« Reply #8 on: December 20, 2015, 09:34:01 PM »
The "Gearless" is a nice engine, with a fascinating mechanism for opening the exhaust valve on every other revolution of the crankshaft. I built a working model of just the valve mechanism last year and posted about it on this forum.---Brian
http://www.modelenginemaker.com/index.php/topic,5281.0.html
« Last Edit: December 20, 2015, 09:39:55 PM by Brian Rupnow »

Offline Dave Otto

  • Full Member
  • *****
  • Posts: 4693
  • Boise, Idaho USA
    • Photo Bucket
Re: Yogi's take on a Duclos Gearless
« Reply #9 on: December 21, 2015, 12:41:20 AM »
Hi Yogi

Looks like you are off to a great start on the gearless engine.
I will also be following along with your progress.

Dave

Offline rudydubya

  • Full Member
  • ****
  • Posts: 290
  • Western Arkansas USA
Re: Yogi's take on a Duclos Gearless
« Reply #10 on: December 21, 2015, 07:47:30 AM »
Following along quietly Yogi.  Got any pictures of your previous projects?

Regards,
Rudy

Offline yogi

  • Full Member
  • ****
  • Posts: 450
  • Duncannon, PA USA
    • Yogi's Workshop
Re: Yogi's take on a Duclos Gearless
« Reply #11 on: December 22, 2015, 12:52:08 AM »
Rudy, I just posted my last engine in the showcase...

Offline yogi

  • Full Member
  • ****
  • Posts: 450
  • Duncannon, PA USA
    • Yogi's Workshop
Re: Yogi's take on a Duclos Gearless
« Reply #12 on: December 23, 2015, 03:53:30 AM »

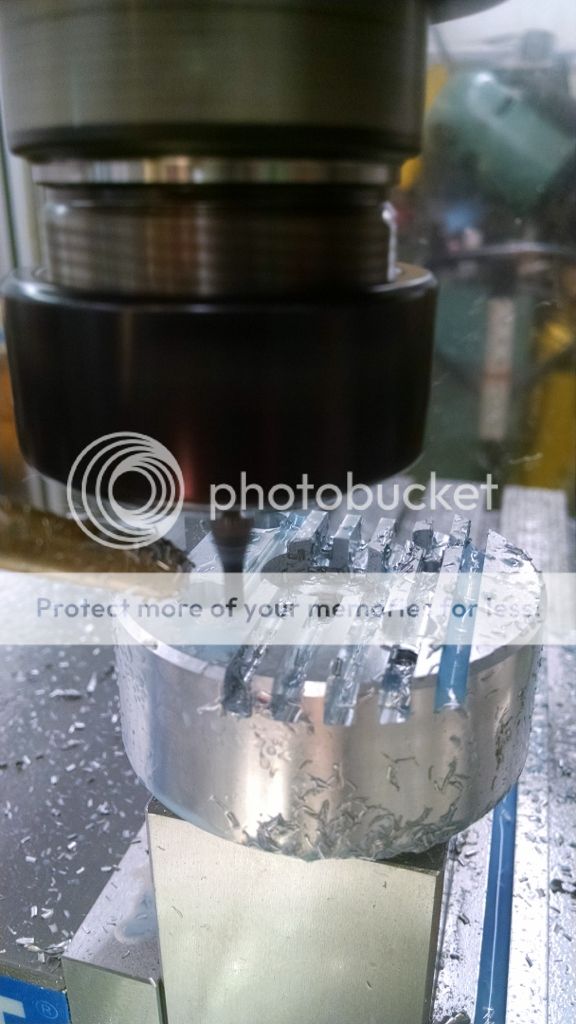

Up next, the cylinder head.

The parts haven't been deburred yet, when I took the pictures.... Lots of edges to deburr...   ;)












Offline yogi

  • Full Member
  • ****
  • Posts: 450
  • Duncannon, PA USA
    • Yogi's Workshop
Re: Yogi's take on a Duclos Gearless
« Reply #13 on: December 26, 2015, 01:01:27 PM »

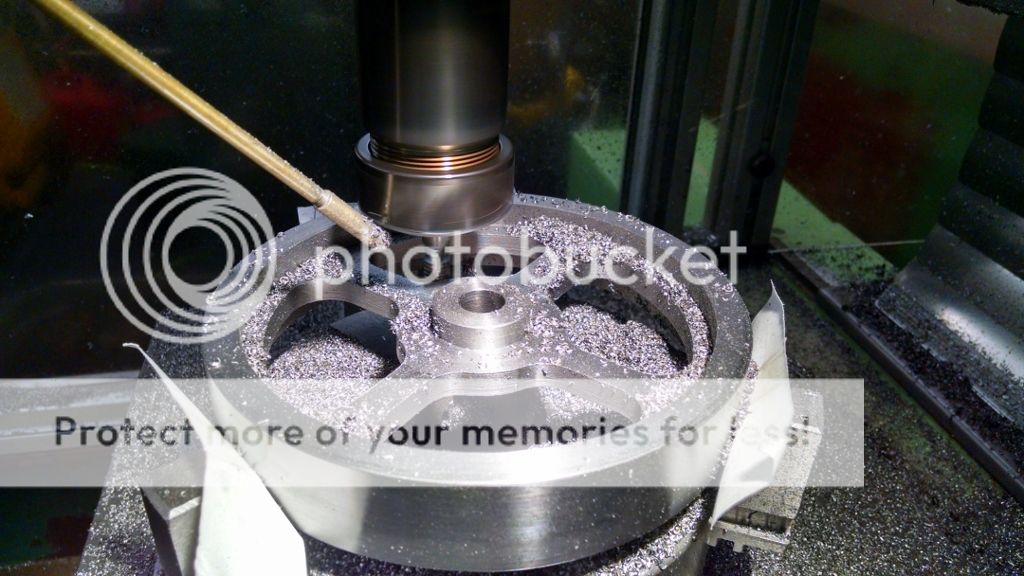

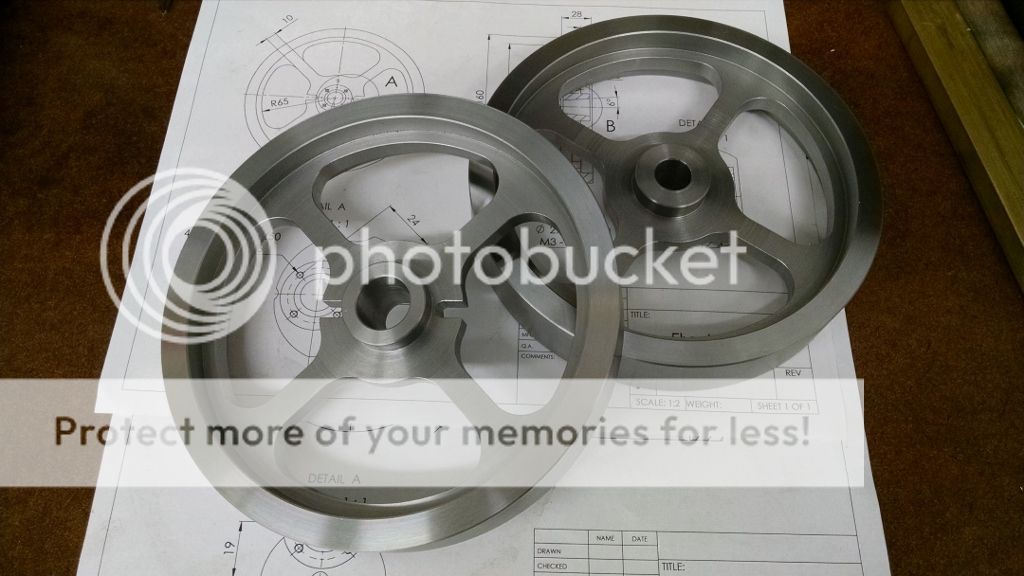

Flywheels are almost done. Just a few tapped holes left...







Offline yogi

  • Full Member
  • ****
  • Posts: 450
  • Duncannon, PA USA
    • Yogi's Workshop
Re: Yogi's take on a Duclos Gearless
« Reply #14 on: December 31, 2015, 09:55:13 PM »
Happy New Year Everyone!!!

Up next, we have the crank shaft.
Its the built up variety. The thing to note about this crank shaft is the crank pin, which is a needle bearing inner ring. Needle bearing inner rings are hard and precision ground, making an ideal crank pin.

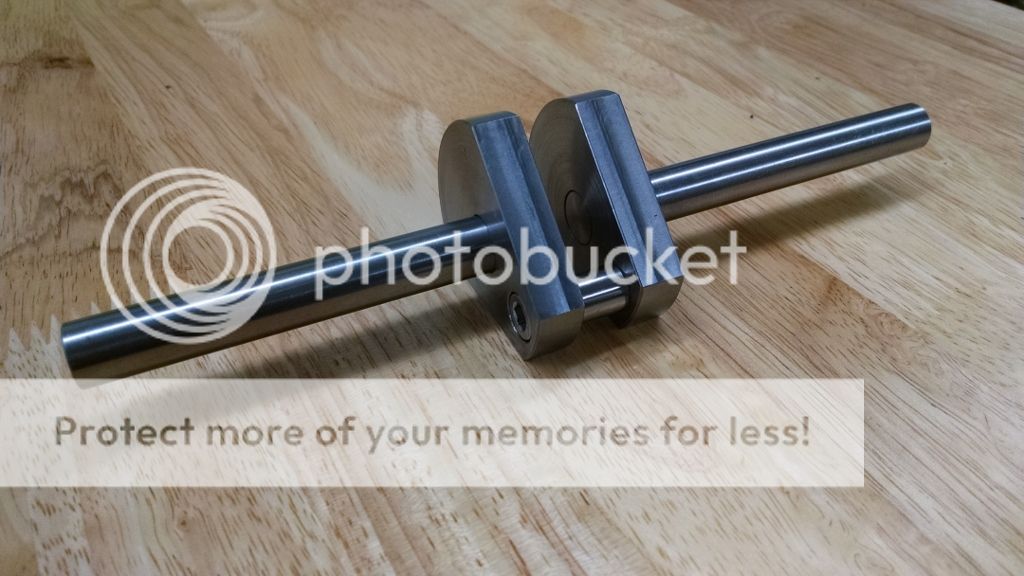

It being a built up crank shaft, the big end bearing will be a needle bearing. I don't have any pictures of the machining, but here a shot of the test fit.
We'll come back to it in more detail after the connecting rod is done and we'll do the final assembly.
