Finishing off a 5" Gauge Simplex Loco
« on: July 30, 2012, 09:20:45 AM »
As many of you will have read elsware I've been completeing off a 5" gauge simplex loco that i bought that was suposidly 90% complete in reality when i got it home I discovered that it was far from 90% complete, and quite a bit of rework was required.

Loco as bought



Rather that start from the beginning of the story I'll just pick up the story from  where we are at the moment.

I had to do a bit of reworking on the cylinders and steam chest this consisted of cutting one of the steam ways into the cylinder making some studds for the steam chest milling one of the steam chests down so that it didn't foul on the frame when the cylinders were bolted to it and fitting cladding to the cylinders.

her's some shot of the cladding work.

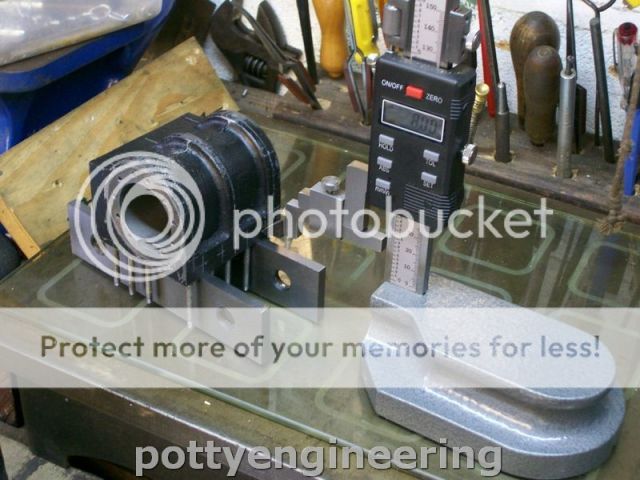

Marking out the cylinder for drilling and tapping.



Tapping the drilled cylinders



Measuring the the required length for the cladding by bending a bit of wire to the shape then straightening the wire out and measuring its length.



The cladding was made from a  bit of 1mm ish thich breass sheet it was anealed firt so that it could be bent to shape then the holes and cut outs machined.

Another part that was required were the guard rails I think this is what they are called, their function is to stop the loco bottoming onto the cylinders if you have a derailment hence saving the cylinders and other bits from damage.

There wasn't any holes drilled in the fram to take the guard rails so I made up a simple mild steel jig clamped this at the apropriate position on the frame to locate the hole for drilling through with a hand drill.



The guard rails were machined out of some 1/8" mild steel and bent to shape.

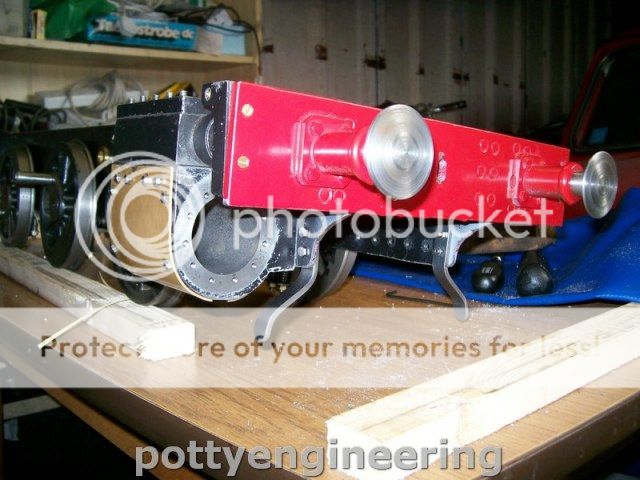

Here they are fitted along with a clad cylinder.



And the rear jobs.
